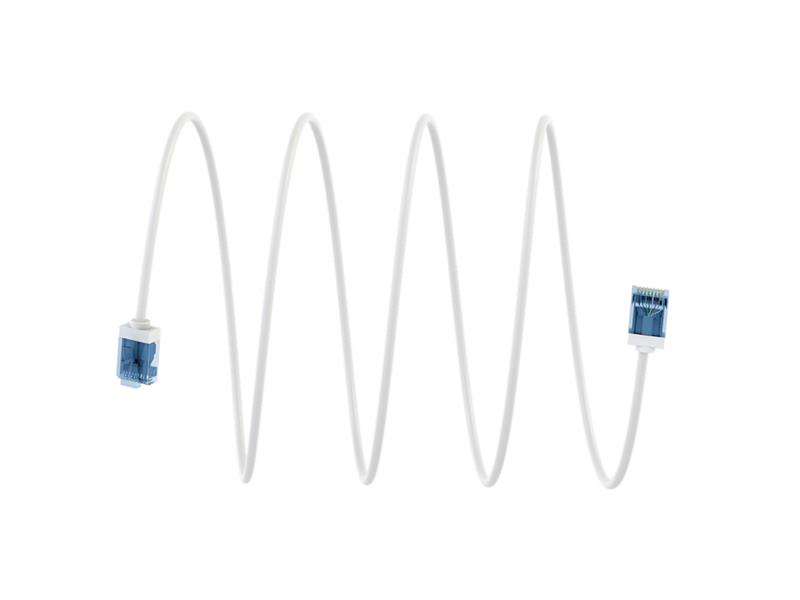

Cable UTP RJ45/RJ45 GOOBAY 74244 0,15m

Ultra-flexible connecting cable CAT 6A, thin, U/FTP

Extra short plugs, pure copper conductor (CU), LSZH, TPE jacket, AWG 32
A category of its own: Super-slim CAT cables with extra short connectors drastically reduce material volume in server cabinets and patch panels – for significantly better air circulation and less heat build-up than conventional cabling. In addition, the soft TPE jacket and thin copper conductors provide special flexibility and material efficiency that make this generation of cables the perfect network partner.
Super thin LAN cable with extra short RJ45 connectors for less cable volume in a server cabinet or patch panel, resulting in optimized air circulation
Safe and flexible: Without twisted-pair shielding and with a halogen-free TPE jacket for an extremely small bending radius and high flexibility
With AWG 32 and an outer diameter of 3.8mm, the cable is ultra-thin but just as powerful as standard CAT cable
CAT 6A network cable is ideal for fast connections such as 10Gigabit Ethernet 10GBASE-T, 100BASE-TX, 1000BASE-T and 10/100/1000/10000 Mbit/s
The RJ45 cable is suitable for Power over Ethernet (PoE, PoE+) and CAT 6A tested (supplied with an individual measurement protocol)
High-quality copper conductor (CU) and gold-plated plug contacts ensure low transfer resistance and prevent corrosion
The compact anti-bend protection effectively prevents the cable from breaking and ensures a long service life of the Ethernet cable
Products are marked only with a paper label, plastic bags and plastic zip ties are not used.

In accordance with applicable IEC and ISO standards:

IEC 60332-1: Non-flammable
IEC 61034: Low smoke
IEC 60754-2: Halogen-free
ISO 11801: Performance Fluke channel test: channel + PoE

Technical parameters:

Connection:
Connection, contact material: Gold plated
Latch protection: both sides
Contacting: EIA/TIA-568 B
Connection type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Anti-kink protection: both sides
Cable:
CAT 6A
Shielding class: U/FTP
bending radius >: 25.4 mm
Cable Type: Thin (Super Flexible)
Cable length: 0.15 m
Cable sheath diameter (approx): 3.8 mm
Inner conductor material: CU (copper)
AWG: 32/7 (stranded)
Number of shields: 1 x
Type 1, shielding: foil (alu) PiMF
Cable sheath material: LSZH-TPE
Signal transmission:
max. bandwidth: 500 MHz
White color
Marking: WEEE, CE
