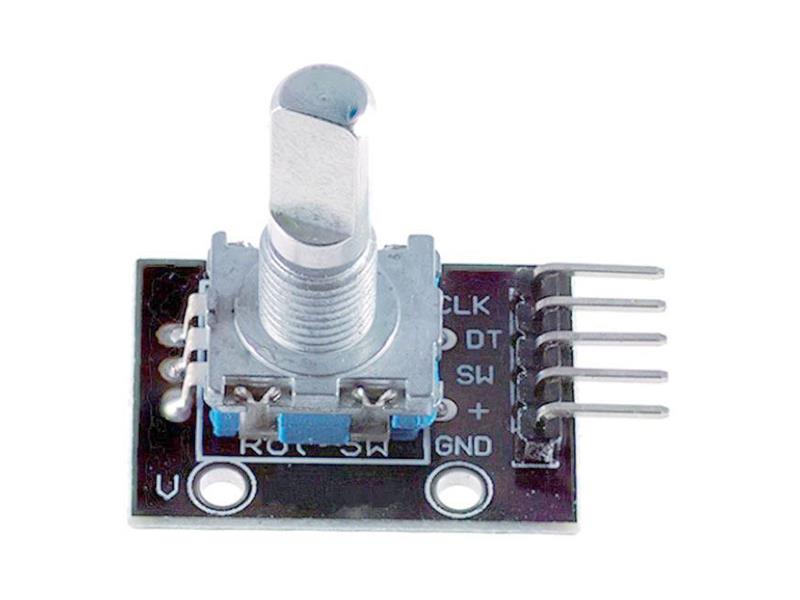

Rotary encoder with button KX-040 - for Arduino
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
Non-stop potentiometer with pushbutton and two phase outputs for determining the direction of rotation.
Technical parameters:
- power supply: 5V
- speed: unlimited
- number of pulses per revolution: 20
- pins: CLK, DT, SW, VCC, GND
- button (push in the direction of the axis)
- service life: 30,000 cycles
- axis diameter: 6 mm
- axis length: 20 mm
- thread length: 6 mm
The product is not a stand-alone unit, it requires professional installation.
Caratteristiche
Brand:
TIPA
EAN:
8596425084708
