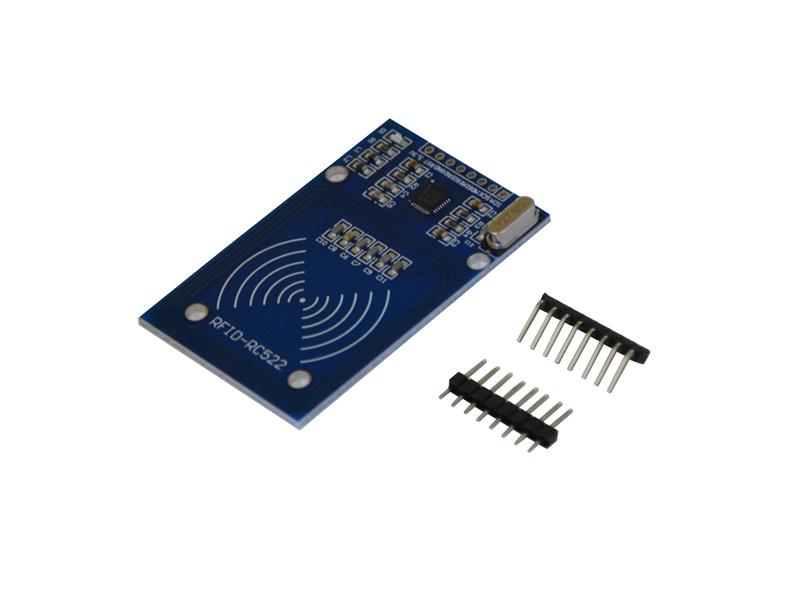

RFID reader module with built-in antenna 13.56Mhz RC522 (MFRC-522)
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
The RFID reader module MFRC-522 is used for reading or writing contactless MIFARE 13.56 MHz chip cards.
Technical parameters:
- type MFRC522, frequency 13.56 MHz, NXP
- power supply: 3.3 V DC
- quiescent current: 10 – 13 mA / 3.3 V DC
- operating current: 13 to 26 mA / 3.3 V DC
- CRYPTO1 encryption support
- two-way data transfer speed of up to 424 kbit/s
- SPI communication bus
- compatible with: Arduino platform, Raspberry Pi and others
- built-in antenna
- operating temperature: –20 to 80 °C
- dimensions: 40 × 60 mm
Caratteristiche
Brand:
TIPA
EAN:
8595563730379
