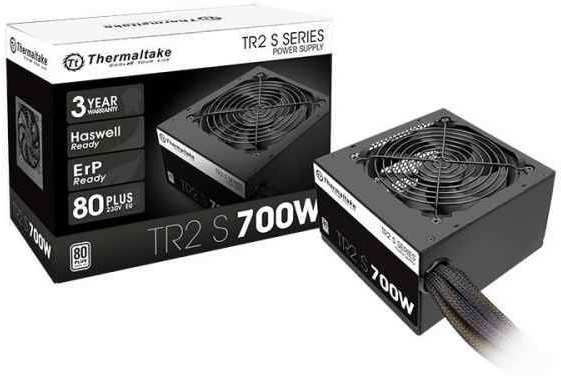

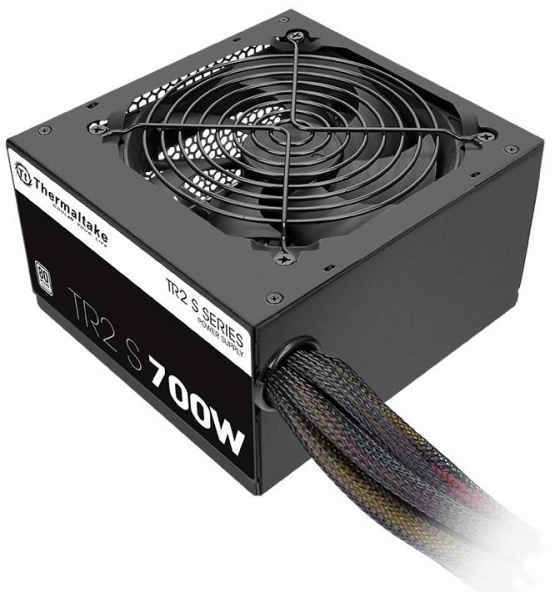

Thermaltake PC- Netzteil TR2 S 700W PS-TRS-0700NPCWEU-2

Thermaltake TRS-700AH2NK. Total power 700 W, AC input voltage 230 V, AC input frequency 50 - 60 Hz. Fan diameter 12 cm, Number of fans 1 fan(s), Fan location Top. Motherboard power connector 20+4 pin ATX. Purpose PC, Power supply unit (PSU) form factor ATX, Mean time between failures (MTBF) 100000 h. Product colour Black
Power Total power 700 W AC input voltage 230 V AC input frequency 50 - 60 Hz Input current 9 A Power Factor Correction (PFC) type Active Combined power (+3.3V) 120 W Combined power (+12V) 648 W Combined power (+5V) 120 W Combined power (-12V) 6 W Combined power (+5Vsb) 12.5 W Max output current (+3.3V) 24 A Max output current (+12V) 54 A Max output current (+5V) 17 A Max output current (-12V) 0.5 A Max output current (+5Vsb) 2.5 A Hold time 16 ms Efficiency 86% Cooling Fan diameter 12 cm Number of fans 1 fan(s) Fan location Top Fan speed 1800 Cooling type Active Ports & interfaces Motherboard power connector 20+4 pin ATX Peripheral (Molex) power connectors (4-pin) 5 Number of SATA power connectors 6 PCI Express power connectors (6+2 pin) 2 CPU power connector (4+4 pin) Ja ATX power connector (20+4 pin) Ja Floppy disk drive connector Ja Performance Purpose PC Power supply unit (PSU) form factor ATX ATX version 2.3 Mean time between failures (MTBF) 100000 h Design Product colour Black Operational conditions Operating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -40 - 55 °C Operating relative humidity (H-H) 20 - 85% Storage relative humidity (H-H) 10 - 95% Weight & dimensions Width 150 mm Depth 140 mm Height 86 mm Certificates 80 PLUS certification 80 PLUS Certification CE/CB/TUV Packaging data Package type Box
