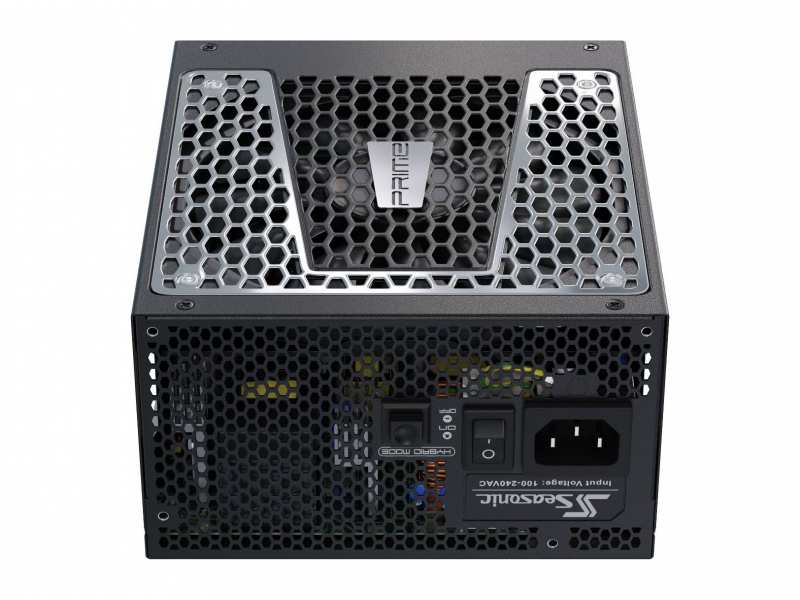

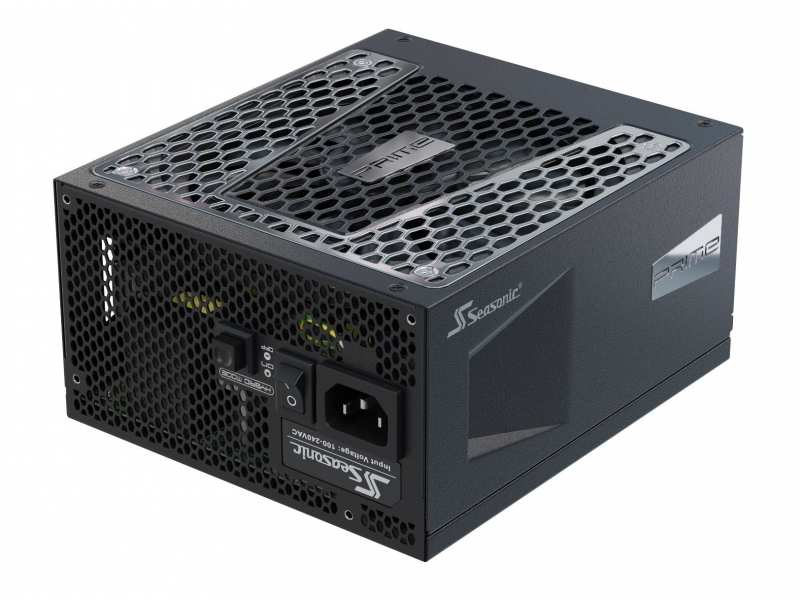

Seasonic Netzteil 650W PRIME Modular (80+Titanium) SSR-650TR
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
Seasonic Prime TX. Total power 650 W, AC input voltage 100 - 240 V, AC input frequency 50/60 Hz. Motherboard power connector 20+4 pin ATX, Motherboard power cable length 61 cm, SATA power cable length 450,470,570,700,760,810,860 mm. Purpose PC, Power supply unit (PSU) form factor ATX, 80 PLUS certification 80 PLUS Titanium. Product colour Black, Fan diameter 13.5 cm, Number of fans 1 fan(s). Width 150 mm, Depth 170 mm, Height 86 mm
Ports & interfaces Motherboard power cable length 61 cm PCI Express power connectors (6+2 pin) 4 Cabling type Modular Motherboard power connector 20+4 pin ATX CPU power cable length 65 cm Floppy drive power connector 1 Peripheral (Molex) power connectors (4-pin) 5 Floppy disk drive cable length 10.1 cm PCI Express power cable length 75 cm ATX power connector (20+4 pin) Y Number of SATA power connectors 10 Peripheral (Molex) power cable length 470,690 mm SATA power cable length 450,470,570,700,760,810,860 mm PCI Express connector Y Floppy disk drive connector Y CPU power connector (4+4 pin) Y Design Number of fans 1 fan(s) Fan location Top Product colour Black Fan diameter 13.5 cm On/off switch Y Weight & dimensions Depth 170 mm Height 86 mm Width 150 mm Operational conditions Operating temperature (T-T) 0 - 50 °C Performance Power supply unit (PSU) form factor ATX 80 PLUS certification 80 PLUS Titanium Bearing technology FDB Purpose PC Certification WEEE, ErP Lot 6, REACH Energy Star certified Y Mean time between failures (MTBF) 150000 h RoHS compliance Y Safety cTUVus, TUV, CB, CCC, BSMI, EAC, CE Power Combined power (+12V) 648 W AC input frequency 50/60 Hz Combined power (-12V) 3.6 W Max output current (+5Vsb) 3 A Max output current (+3.3V) 20 A Input current 9.5 - 4.5 A Max output current (+5V) 20 A Max output current (-12V) 0.3 A AC input voltage 100 - 240 V Combined power (+5Vsb) 15 W Max output current (+12V) 54 A Combined power (+3.3V) 100 W Total power 650 W Combined power (+5V) 100 W Power protection features Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage Packaging data Package type Box Manual Y Cables included AC
Ports & interfaces Motherboard power cable length 61 cm PCI Express power connectors (6+2 pin) 4 Cabling type Modular Motherboard power connector 20+4 pin ATX CPU power cable length 65 cm Floppy drive power connector 1 Peripheral (Molex) power connectors (4-pin) 5 Floppy disk drive cable length 10.1 cm PCI Express power cable length 75 cm ATX power connector (20+4 pin) Y Number of SATA power connectors 10 Peripheral (Molex) power cable length 470,690 mm SATA power cable length 450,470,570,700,760,810,860 mm PCI Express connector Y Floppy disk drive connector Y CPU power connector (4+4 pin) Y Design Number of fans 1 fan(s) Fan location Top Product colour Black Fan diameter 13.5 cm On/off switch Y Weight & dimensions Depth 170 mm Height 86 mm Width 150 mm Operational conditions Operating temperature (T-T) 0 - 50 °C Performance Power supply unit (PSU) form factor ATX 80 PLUS certification 80 PLUS Titanium Bearing technology FDB Purpose PC Certification WEEE, ErP Lot 6, REACH Energy Star certified Y Mean time between failures (MTBF) 150000 h RoHS compliance Y Safety cTUVus, TUV, CB, CCC, BSMI, EAC, CE Power Combined power (+12V) 648 W AC input frequency 50/60 Hz Combined power (-12V) 3.6 W Max output current (+5Vsb) 3 A Max output current (+3.3V) 20 A Input current 9.5 - 4.5 A Max output current (+5V) 20 A Max output current (-12V) 0.3 A AC input voltage 100 - 240 V Combined power (+5Vsb) 15 W Max output current (+12V) 54 A Combined power (+3.3V) 100 W Total power 650 W Combined power (+5V) 100 W Power protection features Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage Packaging data Package type Box Manual Y Cables included AC
Caratteristiche
Brand:
Seasonic
EAN:
4711173874140
Peso:
3.462
