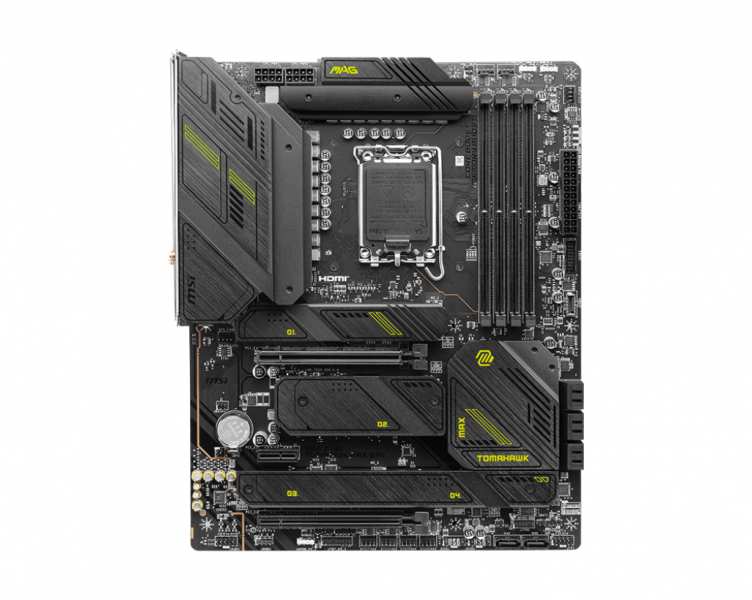

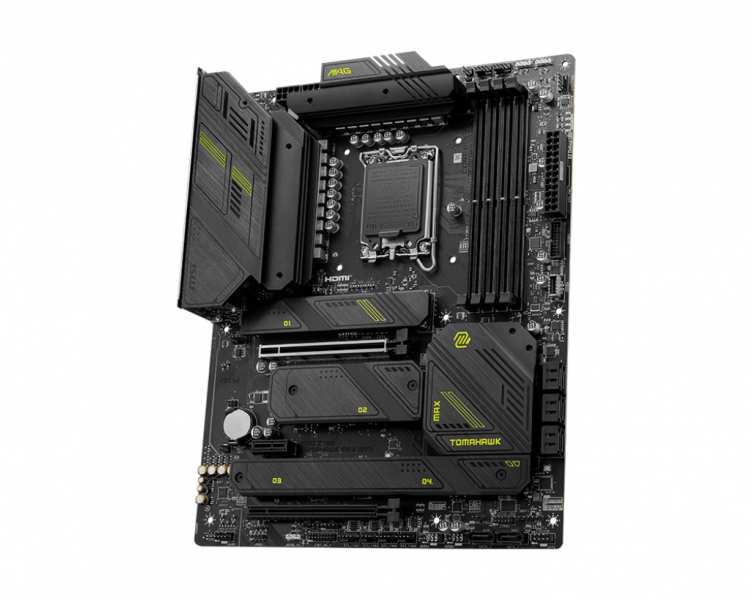

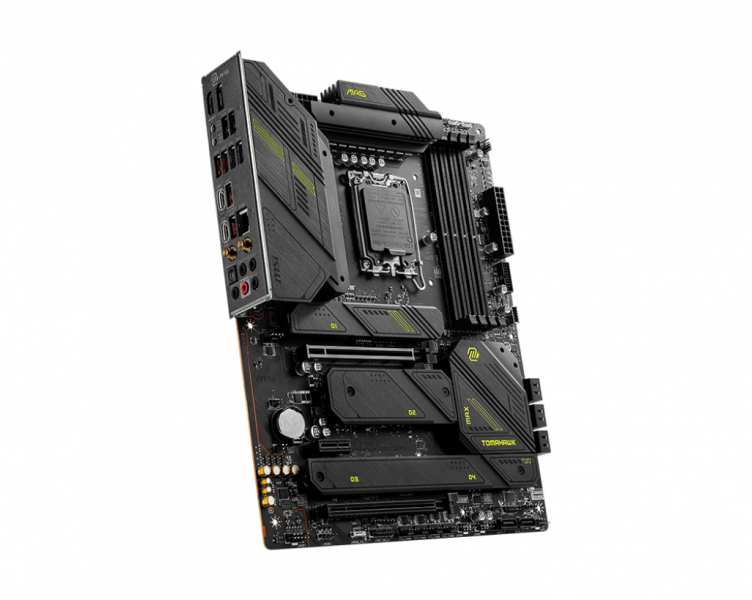

MSI MAG Z790 Tomahawk MAX Wi-Fi Intel Mainboard 7E25-002R

MSI MAG Z790 TOMAHAWK MAX WIFI. Processor manufacturer Intel, Processor socket LGA 1700, Compatible processor series Intel® Celeron®, Intel® Pentium® Gold. Supported memory types DDR5-SDRAM, Maximum internal memory 128 GB, Memory channels Dual-channel. Supported storage drive interfaces M.2, PCI Express, Supported storage drive types HDD & SSD, Internal storage capacity 10 GB. Ethernet interface type 2.5 Gigabit Ethernet, Top Wi-Fi standard Wi-Fi 6 (802.11ax), Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for PC, Motherboard form factor ATX, Motherboard chipset family Intel
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron®, Intel® Pentium® Gold Supported processor sockets LGA 1700 Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory channels Dual-channel Non-ECC Yes Supported memory clock speeds 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz Supported memory clock speed (max) 5333 MHz Maximum internal memory 128 GB Unbuffered memory Yes Features Component for PC Motherboard form factor ATX Motherboard chipset family Intel Motherboard chipset Intel Z790 Audio output channels 7.1 channels Windows operating systems supported Windows 10 x64, Windows 11 x64 Internal I/O USB 2.0 connectors 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA II connectors 6 Front panel audio connector Yes Front panel connector Yes CPU fan connector Yes Chassis intrusion connector Yes TPM connector Yes RGB LED pin header Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 S/PDIF out port Yes Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, PCI Express Internal storage capacity 10 GB RAID levels 0, 5, 10 Network Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Yes Top Wi-Fi standard Wi-Fi 6 (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Bluetooth Yes Bluetooth version 5.3 BIOS BIOS type EFI AMI BIOS memory size 256 Mbit Graphics Parallel processing technology support Not supported Weight & dimensions Width 243.8 mm Depth 304.8 mm Packaging content Cables included SATA
