MSI MAG B760M Mortar Wi-Fi II Intel Mainboard 7E13-001R
Accedi in modo che possiamo avvisarti di una risposta
Descrizione

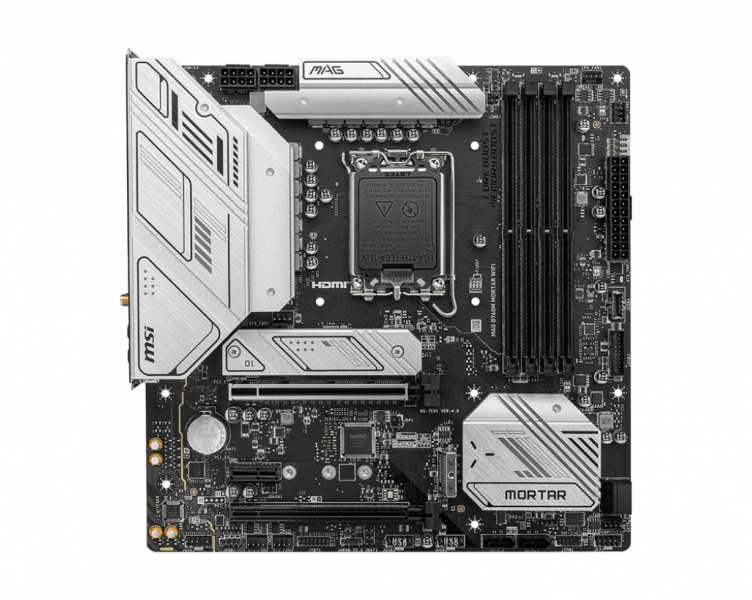

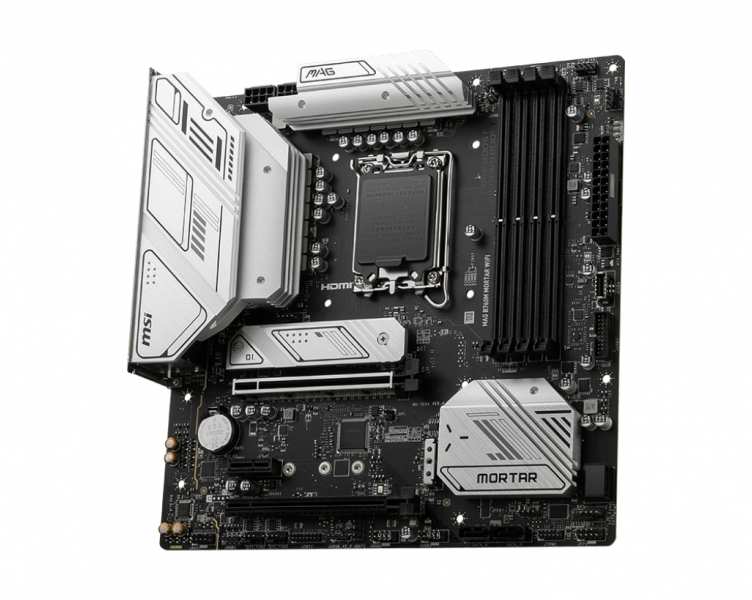

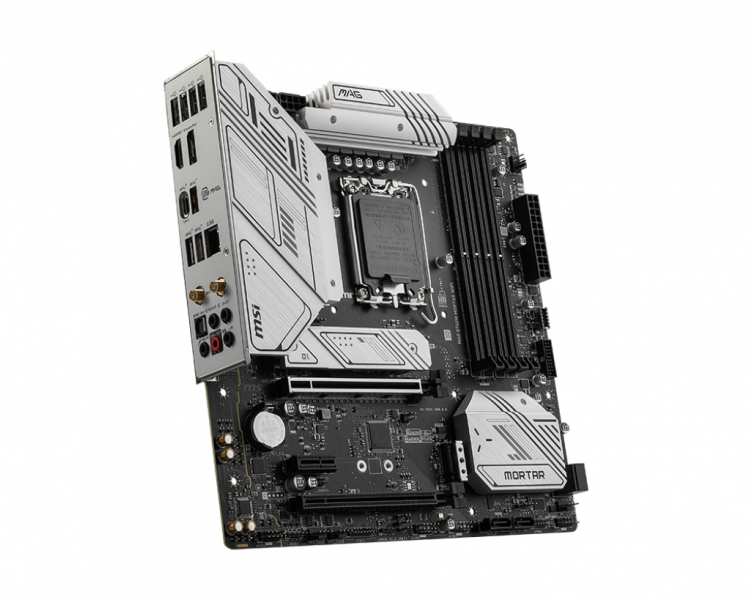

MSI MAG B760M MORTAR WIFI. Processor manufacturer Intel, Processor socket LGA 1700, Compatible processor series Intel® Celeron®, Intel® Pentium® Gold. Supported memory types DDR5-SDRAM, Maximum internal memory 128 GB, Memory slots type DIMM. Supported storage drive interfaces M.2, SATA III, RAID levels 0, 1, 5, 10. Ethernet interface type 2.5 Gigabit Ethernet, Top Wi-Fi standard Wi-Fi 6 (802.11ax), Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax). Component for PC, Motherboard form factor micro ATX, Motherboard chipset family Intel
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron®, Intel® Pentium® Gold Maximum number of SMP processors 1 Supported processor sockets LGA 1700 Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Yes Supported memory clock speeds 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz Supported memory clock speed (max) 5333 MHz Maximum internal memory 128 GB Features Component for PC Motherboard form factor micro ATX Motherboard chipset family Intel Motherboard chipset Intel B760 Audio chip Realtek ALC897 Audio output channels 7.1 channels Power source type ATX Windows operating systems supported Windows 10, Windows 11 Internal I/O USB 2.0 connectors 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 Front panel audio connector Yes Front panel connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes TPM connector Yes RGB LED pin header Yes Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Storage controllers Supported storage drive interfaces M.2, SATA III RAID support Yes RAID levels 0, 1, 5, 10 Network Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Yes Top Wi-Fi standard Wi-Fi 6 (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) Bluetooth Yes Bluetooth version 5.3 Expansion slots PCI Express x1 slots 1 PCI Express x16 slots 2 Weight & dimensions Width 243.8 mm Depth 243.8 mm
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron®, Intel® Pentium® Gold Maximum number of SMP processors 1 Supported processor sockets LGA 1700 Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Yes Supported memory clock speeds 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz Supported memory clock speed (max) 5333 MHz Maximum internal memory 128 GB Features Component for PC Motherboard form factor micro ATX Motherboard chipset family Intel Motherboard chipset Intel B760 Audio chip Realtek ALC897 Audio output channels 7.1 channels Power source type ATX Windows operating systems supported Windows 10, Windows 11 Internal I/O USB 2.0 connectors 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 Front panel audio connector Yes Front panel connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes TPM connector Yes RGB LED pin header Yes Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Storage controllers Supported storage drive interfaces M.2, SATA III RAID support Yes RAID levels 0, 1, 5, 10 Network Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Yes Top Wi-Fi standard Wi-Fi 6 (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) Bluetooth Yes Bluetooth version 5.3 Expansion slots PCI Express x1 slots 1 PCI Express x16 slots 2 Weight & dimensions Width 243.8 mm Depth 243.8 mm
Caratteristiche
Brand:
MSI
EAN:
4711377140119
Peso:
3
