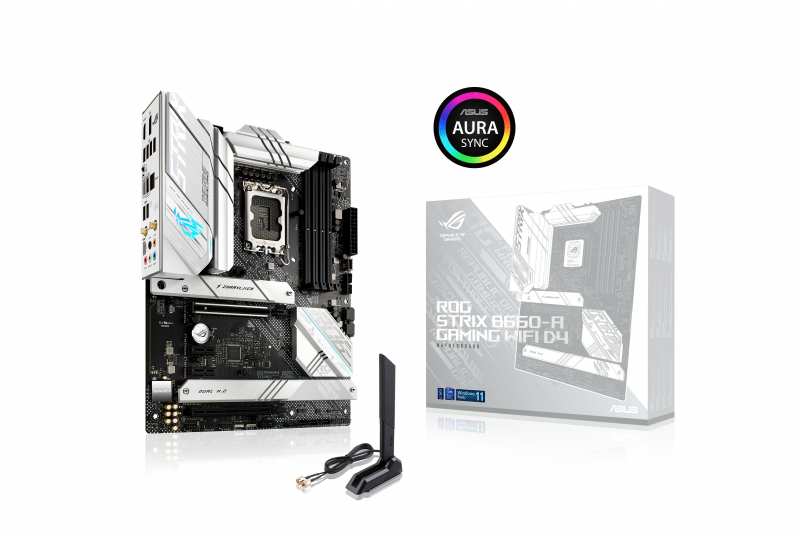

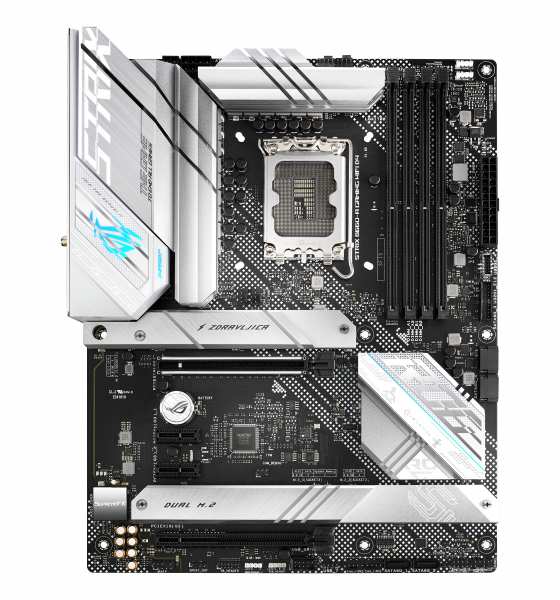

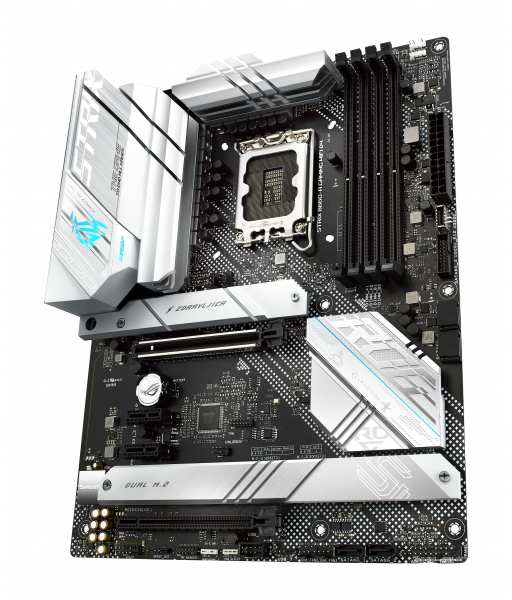

ASUS ROG STRIX B660-A Gaming D4 (WIFI) (1700) (D) | 90MB18S0-M0EAY0
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
ASUS ROG STRIX B660-A GAMING WIFI D4. Processor manufacturer Intel, Processor socket LGA 1700, Compatible processor series Intel® Celeron®, Intel® Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® Gold. Supported memory types DDR4-SDRAM, Maximum internal memory 128 GB, Memory slots type DIMM. Supported storage drive interfaces M.2,PCI Express 4.0,SATA III, Supported storage drive types HDD & SSD. Ethernet interface type 2.5 Gigabit Ethernet, Top Wi-Fi standard Wi-Fi 6 (802.11ax), Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax). Component for PC, Motherboard form factor ATX, Motherboard chipset family Intel
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron®, Intel® Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® Gold Supported processor sockets LGA 1700 Memory Supported memory types DDR4-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Y Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz Maximum internal memory 128 GB Unbuffered memory Y Features Component for PC Motherboard form factor ATX Motherboard chipset family Intel Motherboard chipset Intel B660 Audio chip Realtek ALC4080 Audio output channels 7.1 channels Power source type ATX Windows operating systems supported Windows 10 x64,Windows 11 x64 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 S/PDIF out connector Y Front panel audio connector Y Front panel connector Y ATX Power connector (24-pin) Y CPU fan connector Y Number of chassis fan connectors 3 Chassis intrusion connector Y EPS power connector (8-pin) Y TPM connector Y Thunderbolt headers 1 12V power connector Y RGB LED pin header Y Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 5 WiFi-AP antenna jack 2 Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2,PCI Express 4.0,SATA III Number of HDDs supported 4 Number of storage drives supported 7 RAID support Y RAID levels 0,1,5,10 Network Ethernet LAN Y Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Y Top Wi-Fi standard Wi-Fi 6 (802.11ax) Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) Bluetooth Y Bluetooth version 5.2 BIOS BIOS type UEFI AMI BIOS memory size 192 Mbit Clear CMOS jumper Y Expansion slots PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 3.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 3 Weight & dimensions Width 305 mm Depth 244 mm Packaging content Cables included SATA
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron®, Intel® Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® Gold Supported processor sockets LGA 1700 Memory Supported memory types DDR4-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Y Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz Maximum internal memory 128 GB Unbuffered memory Y Features Component for PC Motherboard form factor ATX Motherboard chipset family Intel Motherboard chipset Intel B660 Audio chip Realtek ALC4080 Audio output channels 7.1 channels Power source type ATX Windows operating systems supported Windows 10 x64,Windows 11 x64 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 S/PDIF out connector Y Front panel audio connector Y Front panel connector Y ATX Power connector (24-pin) Y CPU fan connector Y Number of chassis fan connectors 3 Chassis intrusion connector Y EPS power connector (8-pin) Y TPM connector Y Thunderbolt headers 1 12V power connector Y RGB LED pin header Y Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 5 WiFi-AP antenna jack 2 Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2,PCI Express 4.0,SATA III Number of HDDs supported 4 Number of storage drives supported 7 RAID support Y RAID levels 0,1,5,10 Network Ethernet LAN Y Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Y Top Wi-Fi standard Wi-Fi 6 (802.11ax) Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) Bluetooth Y Bluetooth version 5.2 BIOS BIOS type UEFI AMI BIOS memory size 192 Mbit Clear CMOS jumper Y Expansion slots PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 3.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 3 Weight & dimensions Width 305 mm Depth 244 mm Packaging content Cables included SATA
Caratteristiche
Brand:
ASUS
EAN:
4711081521501
Peso:
2.063
