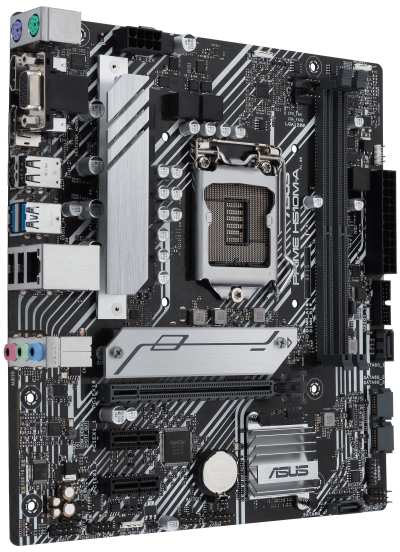

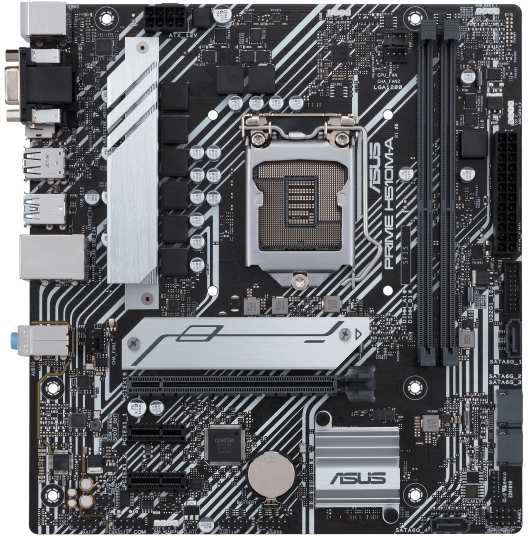

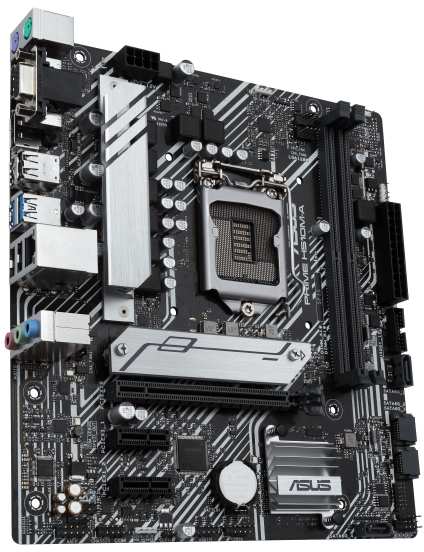

ASUS Mainboard PRIME H510M-A Micro ATX Socket LGA1200 H510 90MB17C0-M0EAY0

ASUS PRIME H510M-A. Processor manufacturer Intel, Processor socket LGA 1200, Compatible processor series Intel® Celeron®, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®. Supported memory types DDR4-SDRAM, Maximum internal memory 64 GB, Memory slots type DIMM. Supported storage drive interfaces M.2,SATA, Supported storage drive types HDD & SSD. Maximum resolution 4096 x 2304 pixels. Ethernet interface type Gigabit Ethernet, LAN controller Intel® I219-V
Processor Processor manufacturer Intel Processor socket LGA 1200 Compatible processor series Intel® Celeron®, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® Maximum number of SMP processors 1 Memory Supported memory types DDR4-SDRAM Number of memory slots 2 Memory slots type DIMM Memory channels Dual-channel Non-ECC Y Supported memory clock speeds 2133,2400,2666,2800,2933 MHz Maximum internal memory 64 GB Unbuffered memory Y Features Component for PC Motherboard form factor micro ATX Motherboard chipset family Intel Motherboard chipset Intel H510 Audio chip Realtek ALC887 / Realtek ALC897 Audio output channels 7.1 channels Power source type ATX Number of mounting holes 6 Windows operating systems supported Windows 10 x64 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 4 S/PDIF out connector Y Audio connector Y Front panel audio connector Y ATX Power connector (24-pin) Y Number of EATX power connectors 1 CPU fan connector Y Number of chassis fan connectors 2 Peripheral (Molex) power connectors (4-pin) 3 EPS power connector (8-pin) Y Number of COM connectors 1 12V power connector Y RGB LED pin header Y Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports 1 PS/2 ports quantity 2 VGA (D-Sub) ports quantity 1 HDMI ports quantity 1 HDMI version 2.0 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 1 Microphone in Y Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2,SATA Number of storage drives supported 5 Network Ethernet LAN Y Ethernet interface type Gigabit Ethernet LAN controller Intel® I219-V Wi-Fi N BIOS BIOS type UEFI AMI BIOS memory size 128 Mbit Clear CMOS jumper Y Expansion slots PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 1 Graphics Maximum resolution 4096 x 2304 pixels Number of displays supported 3 Weight & dimensions Width 226 mm Depth 211 mm Packaging content Cables included SATA Drivers included Y
