ASUS 90MB18J0-M0EAY0 Motherboard 90MB18J0-M0EAY0
Accedi in modo che possiamo avvisarti di una risposta
Descrizione

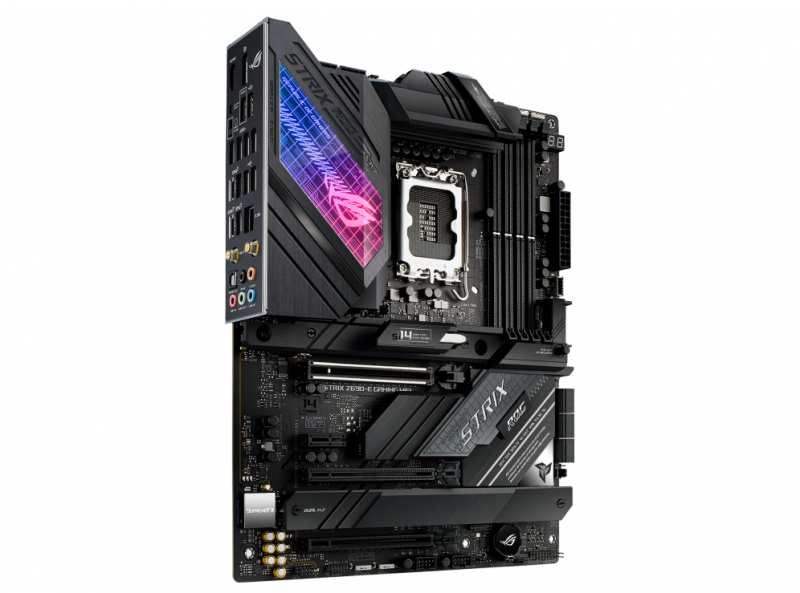

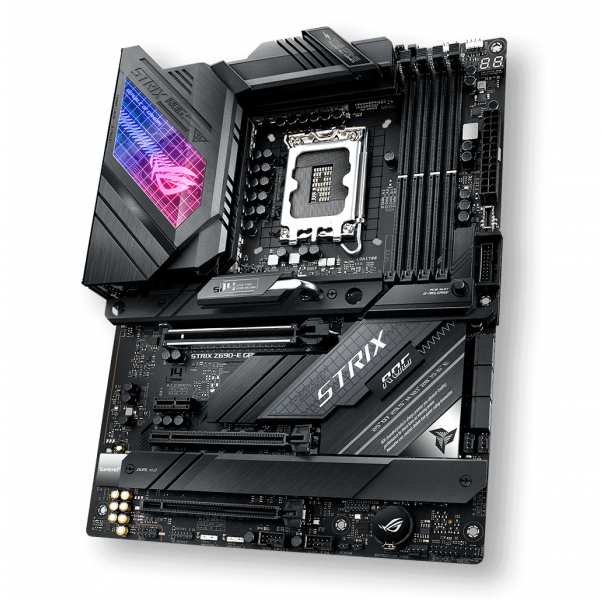

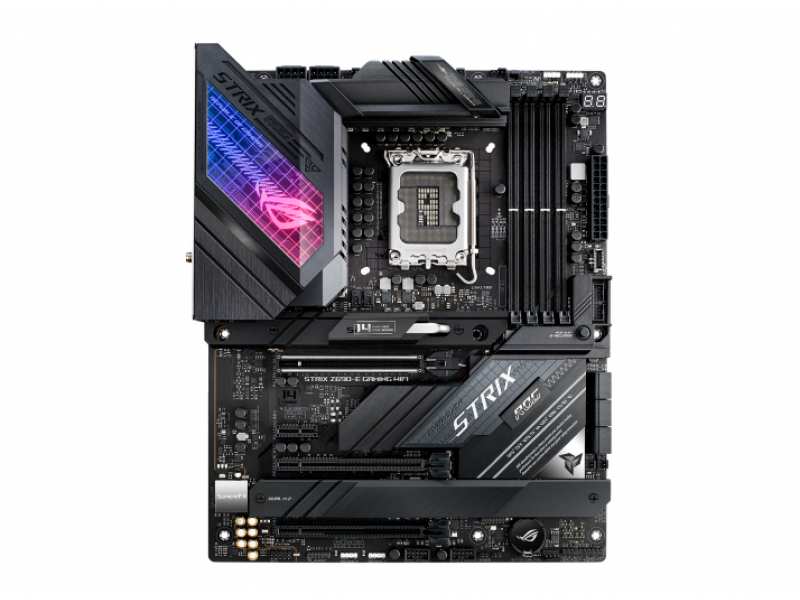

ASUS ROG STRIX Z690-E GAMING WIFI. Processor manufacturer Intel, Processor socket LGA 1700, Compatible processor series Intel® Celeron®, Intel® Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G. Supported memory types DDR5-SDRAM, Maximum internal memory 128 GB, Memory slots type DIMM. Supported storage drive interfaces M.2,SATA, Supported storage drive types HDD & SSD. Ethernet interface type 2.5 Gigabit Ethernet, Top Wi-Fi standard Wi-Fi 6E (802.11az), Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax). Component for PC, Motherboard form factor ATX, Motherboard chipset family Intel
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron®, Intel® Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Y Supported memory clock speeds 6200,4800,5000,5200,5400,5600,5800,6000 MHz Maximum internal memory 128 GB Unbuffered memory Y Features Component for PC Motherboard form factor ATX Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Windows operating systems supported Windows 10,Windows 11 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 6 Front panel audio connector Y ATX Power connector (24-pin) Y Power fan connector Y CPU fan connector Y Number of chassis fan connectors 5 EPS power connector (8-pin) Y Number of COM connectors 1 TPM connector Y Thunderbolt headers 1 12V power connector Y RGB LED pin header Y Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 PS/2 ports quantity 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 1 Microphone in Y S/PDIF out port Y Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2,SATA RAID support Y RAID levels 0,1,5,10 Network Ethernet LAN Y Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Y Top Wi-Fi standard Wi-Fi 6E (802.11az) Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) Bluetooth Y Bluetooth version 5.2 BIOS BIOS type UEFI AMI BIOS memory size 256 Mbit Expansion slots PCI Express x1 (Gen 3.x) slots 1 PCI Express x16 (Gen 3.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 3 Graphics Parallel processing technology support Not supported Weight & dimensions Width 305 mm Depth 244 mm Packaging content Cables included SATA Drivers included Y
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron®, Intel® Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Y Supported memory clock speeds 6200,4800,5000,5200,5400,5600,5800,6000 MHz Maximum internal memory 128 GB Unbuffered memory Y Features Component for PC Motherboard form factor ATX Motherboard chipset family Intel Motherboard chipset Intel Z690 Audio output channels 7.1 channels Windows operating systems supported Windows 10,Windows 11 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 6 Front panel audio connector Y ATX Power connector (24-pin) Y Power fan connector Y CPU fan connector Y Number of chassis fan connectors 5 EPS power connector (8-pin) Y Number of COM connectors 1 TPM connector Y Thunderbolt headers 1 12V power connector Y RGB LED pin header Y Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 PS/2 ports quantity 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 1 Microphone in Y S/PDIF out port Y Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2,SATA RAID support Y RAID levels 0,1,5,10 Network Ethernet LAN Y Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Y Top Wi-Fi standard Wi-Fi 6E (802.11az) Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) Bluetooth Y Bluetooth version 5.2 BIOS BIOS type UEFI AMI BIOS memory size 256 Mbit Expansion slots PCI Express x1 (Gen 3.x) slots 1 PCI Express x16 (Gen 3.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 3 Graphics Parallel processing technology support Not supported Weight & dimensions Width 305 mm Depth 244 mm Packaging content Cables included SATA Drivers included Y
Caratteristiche
Brand:
ASUS
EAN:
4711081494638
Peso:
3.485
