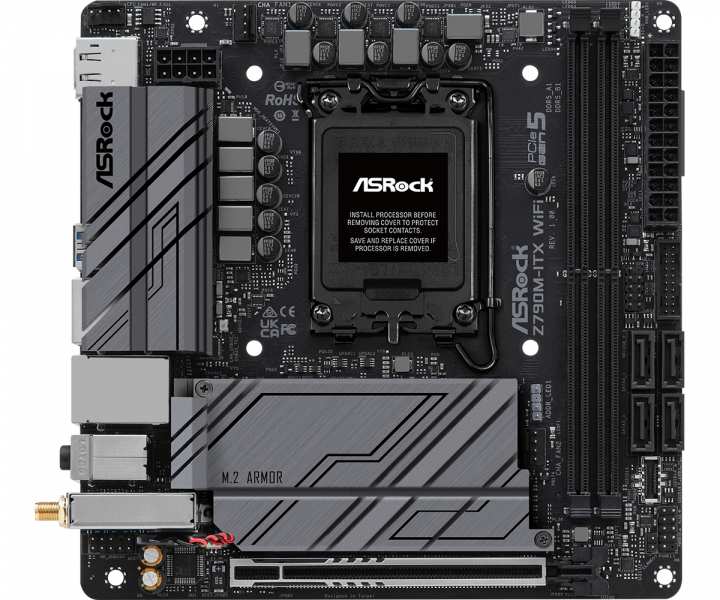

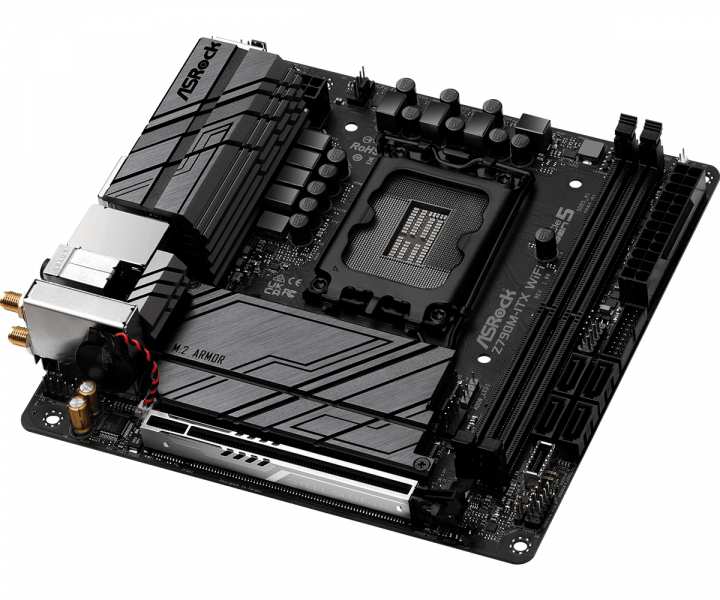

ASRock Z790M-ITX/WiFi Intel Motherboard 90-MXBKE0-A0UAYZ
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
Asrock Z790M-ITX WiFi. Processor manufacturer Intel, Processor socket LGA 1700, Compatible processor series Intel® Core i5, Intel® Core i7, Intel® Core i9. Supported memory types DDR5-SDRAM, Maximum internal memory 64 GB, Memory slots type DIMM. Supported storage drive interfaces M.2, SATA III, Supported storage drive types HDD & SSD, RAID levels 0, 1, 5, 10. Ethernet interface type 2.5 Gigabit Ethernet, Top Wi-Fi standard Wi-Fi 6E (802.11ax), Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax). Component for PC, Motherboard form factor mini ITX, Motherboard chipset family Intel
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Core i5, Intel® Core i7, Intel® Core i9 Maximum number of SMP processors 1 Memory Supported memory types DDR5-SDRAM Number of memory slots 2 Memory slots type DIMM Memory channels Dual-channel Non-ECC Y Maximum internal memory 64 GB Unbuffered memory Y Features Component for PC Motherboard form factor mini ITX Motherboard chipset family Intel Motherboard chipset Intel Z790 Audio chip Realtek ALC897 Audio output channels 7.1 channels Windows operating systems supported Windows 10 x64, Windows 11 x64 Internal I/O USB 2.0 connectors 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 Front panel audio connector Y ATX Power connector (24-pin) Y RGB LED pin header Y Rear panel I/O ports USB 2.0 ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 2 HDMI ports quantity 1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 1 Line-in Y S/PDIF out port Y Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III RAID support Y RAID levels 0, 1, 5, 10 Network Ethernet LAN Y Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Y Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) Bluetooth Y BIOS BIOS type UEFI AMI BIOS memory size 128 Mbit Expansion slots PCI Express x16 (Gen 5.x) slots 1 Weight & dimensions Width 170 mm Depth 170 mm
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Core i5, Intel® Core i7, Intel® Core i9 Maximum number of SMP processors 1 Memory Supported memory types DDR5-SDRAM Number of memory slots 2 Memory slots type DIMM Memory channels Dual-channel Non-ECC Y Maximum internal memory 64 GB Unbuffered memory Y Features Component for PC Motherboard form factor mini ITX Motherboard chipset family Intel Motherboard chipset Intel Z790 Audio chip Realtek ALC897 Audio output channels 7.1 channels Windows operating systems supported Windows 10 x64, Windows 11 x64 Internal I/O USB 2.0 connectors 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 Front panel audio connector Y ATX Power connector (24-pin) Y RGB LED pin header Y Rear panel I/O ports USB 2.0 ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 2 HDMI ports quantity 1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 1 Line-in Y S/PDIF out port Y Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III RAID support Y RAID levels 0, 1, 5, 10 Network Ethernet LAN Y Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Y Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) Bluetooth Y BIOS BIOS type UEFI AMI BIOS memory size 128 Mbit Expansion slots PCI Express x16 (Gen 5.x) slots 1 Weight & dimensions Width 170 mm Depth 170 mm
Caratteristiche
Brand:
AS-Rock
EAN:
4710483941054
Peso:
1.5
