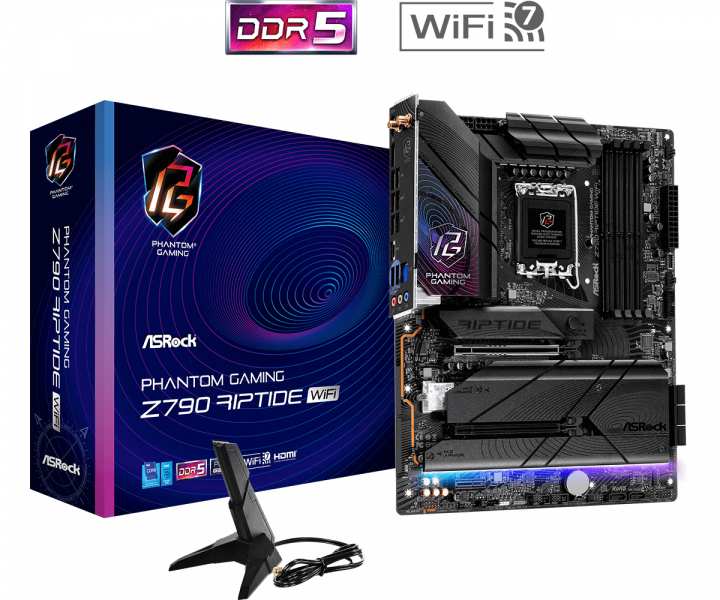

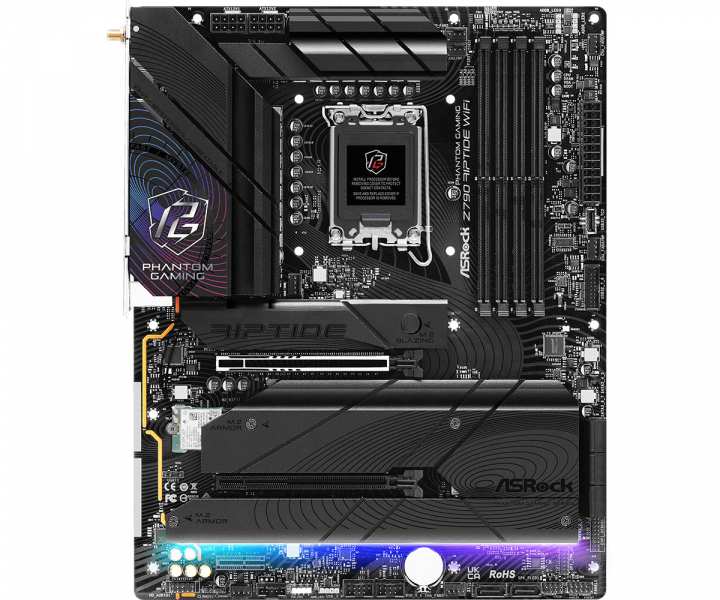

ASRock Phantom Gaming Z790 Riptide WiFi Intel Motherboard 90-MXBMD0-A0UAYZ
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
Asrock Z790 Riptide WiFi. Processor manufacturer Intel, Processor socket LGA 1700, Compatible processor series Intel® Celeron® G, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core.... Supported memory types DDR5-SDRAM, Maximum internal memory 192 GB, Memory slots type DIMM. Supported storage drive interfaces M.2, RAID levels 0, 1, 5, 10. Parallel processing technology support CrossFire, Graphics card family Intel, Graphics card Intel Iris Xe Graphics. USB connector type USB Type-A, USB Type-C
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron® G, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold Supported processor sockets LGA 1700 Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Yes Supported memory clock speed (max) 8000 MHz Maximum internal memory 192 GB Unbuffered memory Yes Features Component for PC Motherboard form factor ATX Motherboard chipset family Intel Motherboard chipset Intel Z790 Audio chip Realtek ALC1220 Audio output channels 7.1 channels Product colour Black Windows operating systems supported Windows 10 x64, Windows 11 x64 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 8 Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of chassis fan connectors 5 TPM connector Yes Thunderbolt headers 1 12V power connector Yes RGB LED pin header Yes Rear panel I/O ports USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 1 Line-in Yes Microphone in Yes WiFi-AP antenna jack 2 USB connector type USB Type-A, USB Type-C Storage controllers Supported storage drive interfaces M.2 Number of storage drives supported 5 RAID support Yes RAID levels 0, 1, 5, 10 Network Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet LAN controller Killer E3100G Wi-Fi Yes Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) Bluetooth Yes Bluetooth version 5.4 BIOS BIOS type UEFI AMI BIOS memory size 128 Mbit Expansion slots PCI Express x1 (Gen 3.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 1 Graphics Parallel processing technology support CrossFire Graphics card family Intel Graphics card Intel Iris Xe Graphics Maximum resolution 7680 x 4320 pixels HDCP Yes Discrete graphics support Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Cables included SATA Antenna included Yes Bundled software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC Technical details Sustainability compliance Yes Sustainability certificates CE, ErP, EuP, Federal Communications Commission (FCC)
Processor Processor manufacturer Intel Processor socket LGA 1700 Compatible processor series Intel® Celeron® G, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold Supported processor sockets LGA 1700 Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel Non-ECC Yes Supported memory clock speed (max) 8000 MHz Maximum internal memory 192 GB Unbuffered memory Yes Features Component for PC Motherboard form factor ATX Motherboard chipset family Intel Motherboard chipset Intel Z790 Audio chip Realtek ALC1220 Audio output channels 7.1 channels Product colour Black Windows operating systems supported Windows 10 x64, Windows 11 x64 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 8 Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of chassis fan connectors 5 TPM connector Yes Thunderbolt headers 1 12V power connector Yes RGB LED pin header Yes Rear panel I/O ports USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Headphone outputs 1 Line-in Yes Microphone in Yes WiFi-AP antenna jack 2 USB connector type USB Type-A, USB Type-C Storage controllers Supported storage drive interfaces M.2 Number of storage drives supported 5 RAID support Yes RAID levels 0, 1, 5, 10 Network Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet LAN controller Killer E3100G Wi-Fi Yes Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) Bluetooth Yes Bluetooth version 5.4 BIOS BIOS type UEFI AMI BIOS memory size 128 Mbit Expansion slots PCI Express x1 (Gen 3.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 1 Graphics Parallel processing technology support CrossFire Graphics card family Intel Graphics card Intel Iris Xe Graphics Maximum resolution 7680 x 4320 pixels HDCP Yes Discrete graphics support Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Cables included SATA Antenna included Yes Bundled software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC Technical details Sustainability compliance Yes Sustainability certificates CE, ErP, EuP, Federal Communications Commission (FCC)
Caratteristiche
Brand:
AS-Rock
EAN:
4710483944475
Peso:
3.5
