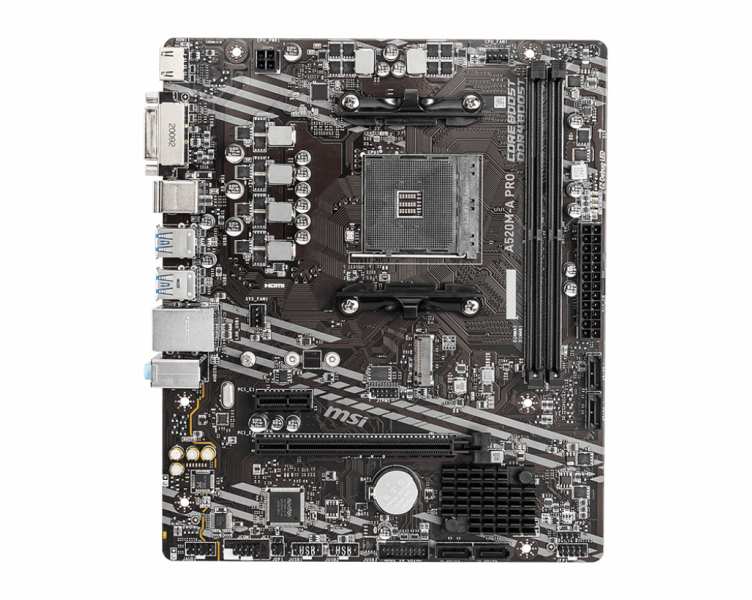

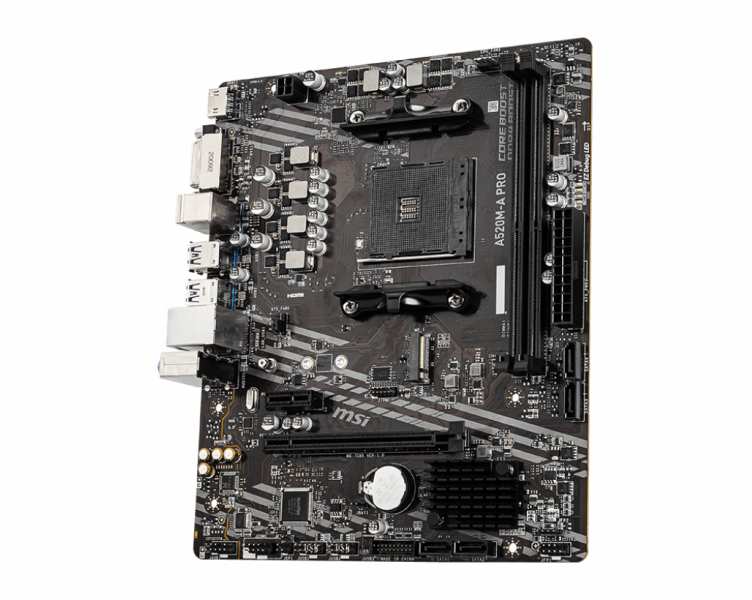

MSI A520M-A Pro (AM4) (D) | 7C96-001R

MSI A520M-A PRO. Processor manufacturer AMD, Processor socket Socket AM4, Compatible processor series AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD.... Supported memory types DDR4-SDRAM, Memory slots type DIMM, Supported memory clock speeds 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz. Supported storage drive interfaces PCI Express 3.0, Serial ATA, Supported storage drive types HDD & SSD. Maximum resolution 4096 x 2160 pixels. Ethernet interface type Gigabit Ethernet, LAN controller Realtek RTL8111H
Processor Processor manufacturer AMD Processor socket Socket AM4 Compatible processor series AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9 Maximum number of SMP processors 1 Memory Supported memory types DDR4-SDRAM Number of memory slots 2 Memory slots type DIMM Memory channels Dual-channel ECC Y Non-ECC Y Supported memory clock speeds 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz Maximum internal memory 64 GB Unbuffered memory Y Features Component for PC Motherboard form factor micro ATX Motherboard chipset family AMD Motherboard chipset AMD A520 Audio chip Realtek ALC892 Audio output channels 7.1 channels Number of mounting holes 8 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 4 Front panel audio connector Y Front panel connector Y ATX Power connector (24-pin) Y CPU fan connector Y Number of chassis fan connectors 2 Chassis intrusion connector Y Rear panel I/O ports USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DVI-D ports quantity 1 Headphone outputs 1 Microphone in Y Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces PCI Express 3.0, Serial ATA Number of HDDs supported 5 RAID levels 0,1,10 Network Ethernet LAN Y Ethernet interface type Gigabit Ethernet LAN controller Realtek RTL8111H Wi-Fi N Expansion slots PCI Express x1 (Gen 3.x) slots 1 PCI Express x16 (Gen 3.x) slots 1 Graphics Maximum resolution 4096 x 2160 pixels Number of displays supported 2 Weight & dimensions Width 236 mm Depth 200 mm
