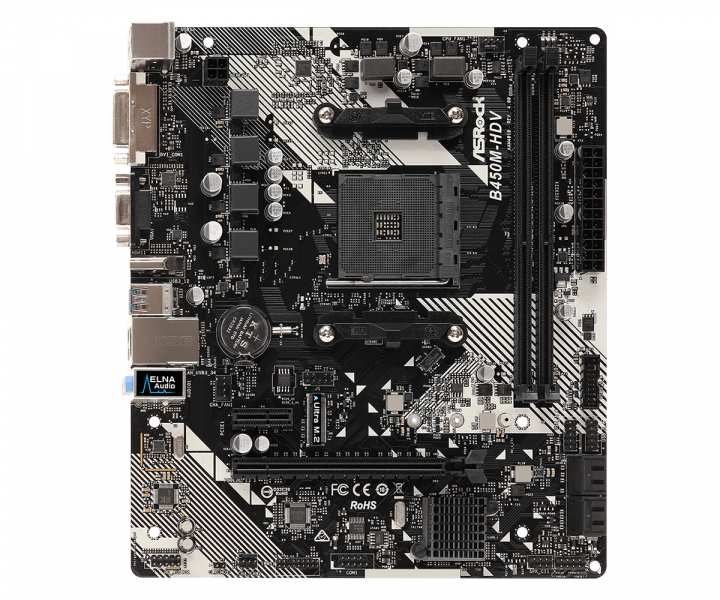

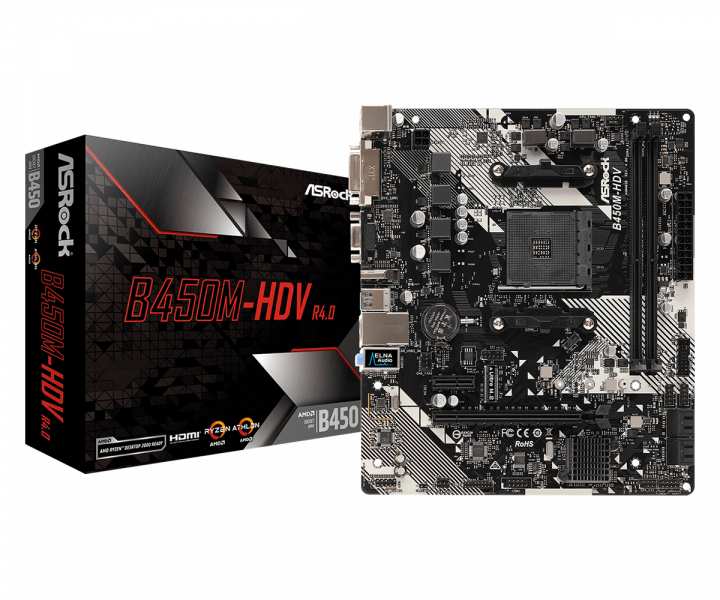

ASRock MB B450M-HDV R4.0 AM4 M-ATX D-Sub/HDMI/DVI DDR4 retail 90-MXB9N0-A0UAYZ

Asrock B450M-HDV R4.0. Processor manufacturer AMD, Processor socket Socket AM4, Compatible processor series AMD Ryzen. Supported memory types DDR4-SDRAM, Memory slots type DIMM, Supported memory clock speeds 2133,2400,2667,2933,3200 MHz. Supported storage drive interfaces M.2,PCI Express 3.0,Serial ATA III, Supported storage drive types HDD,SSD. Graphics adapter family AMD, Maximum resolution 4096 x 2160 pixels. Ethernet interface type Gigabit Ethernet, LAN controller Realtek RTL8111H
Processor Compatible processor series AMD Ryzen Processor socket Socket AM4 Processor manufacturer AMD Memory Supported memory types DDR4-SDRAM ECC Y Number of memory slots 2 Maximum internal memory 32 GB Memory slots type DIMM Supported memory clock speeds 2133,2400,2667,2933,3200 MHz Unbuffered memory Y Non-ECC Y Memory channels Dual Rear panel I/O ports Headphone outputs 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 DVI-D ports quantity 1 HDMI ports quantity 1 Microphone in Y VGA (D-Sub) ports quantity 1 USB 2.0 ports quantity 2 Ethernet LAN (RJ-45) ports 1 PS/2 ports quantity 1 Other features Quick installation guide Y Utilities included Y Internal I/O CPU fan connector Y 12V power connector Y TPM connector Y Front panel audio connector Y Chassis intrusion connector Y Number of COM connectors 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 4 Number of chassis fan connectors 2 USB 2.0 connectors 2 Graphics Parallel processing technology support Not supported Maximum resolution 4096 x 2160 pixels On-board graphics adapter Y HDCP Y Graphics adapter family AMD DirectX version 12.0 Weight & dimensions Depth 201 mm Width 230 mm BIOS System Management BIOS (SMBIOS) version 2.3 BIOS type UEFI AMI BIOS memory size 128 Mbit ACPI version 5.1 Clear CMOS jumper Y Packaging content Bundled software AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Cables included SATA Drivers included Y Storage controllers Supported storage drive types HDD,SSD Supported storage drive interfaces M.2,PCI Express 3.0,Serial ATA III RAID levels 0,1,10 Network Wi-Fi N Ethernet LAN Y Wake-on-LAN ready Y LAN controller Realtek RTL8111H Ethernet interface type Gigabit Ethernet Expansion slots PCI Express x1 (Gen 2.x) slots 1 PCI Express x16 (Gen 3.x) slots 3 Features Motherboard chipset AMD B450 Motherboard chipset family AMD Certification - FCC, CE, - ErP/EuP ready (ErP/EuP ready power supply is required) Motherboard form factor Micro ATX Audio output channels 7.1 channels Windows operating systems supported Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64 Component for PC Audio chip Realtek ALC887
