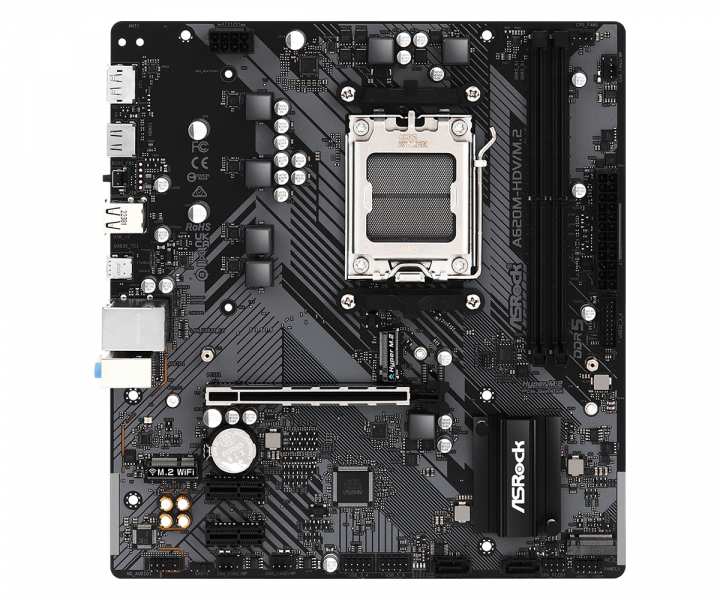

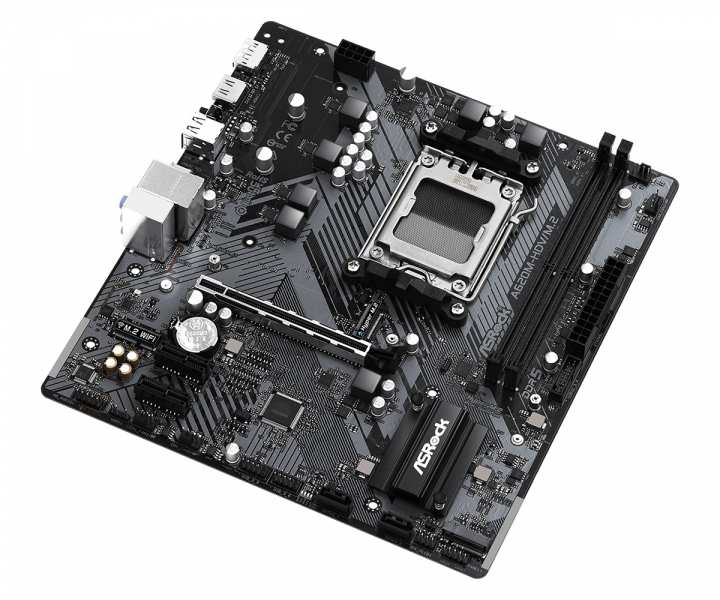

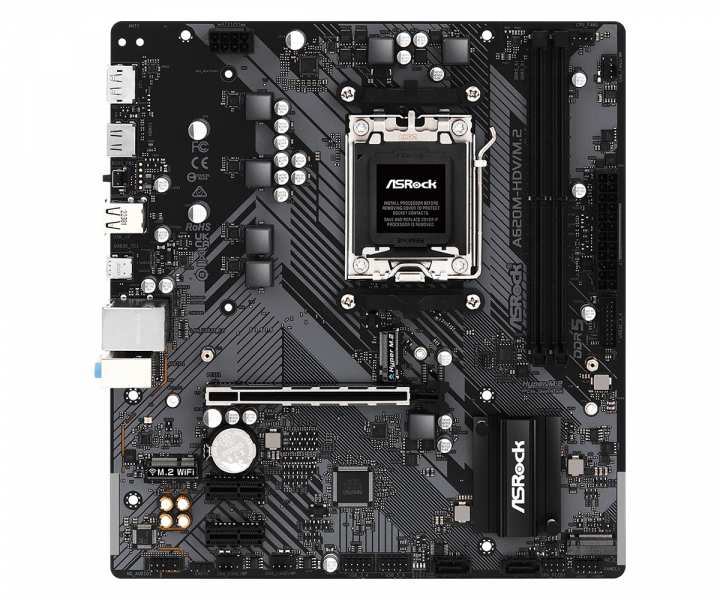

ASRock A620M-HDV/M.2 AM5 AMD Motherboard 90-MXBLL0-A0UAYZ
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
Asrock A620M-HDV/M.2. Processor manufacturer AMD, Processor socket Socket AM5, Compatible processor series AMD Ryzen 9 7th Gen. Supported memory types DDR5-SDRAM, Maximum internal memory 96 GB, Memory slots type DIMM. Supported storage drive interfaces M.2, SATA III, Supported storage drive types HDD & SSD, RAID levels 0, 1, 10. Ethernet interface type Gigabit Ethernet, LAN controller Realtek RTL8111H. Component for PC, Motherboard form factor micro ATX, Motherboard chipset family AMD
Processor Processor manufacturer AMD Processor socket Socket AM5 Compatible processor series AMD Ryzen 9 7th Gen Maximum number of SMP processors 1 Memory Supported memory types DDR5-SDRAM Number of memory slots 2 Memory slots type DIMM Memory channels Dual-channel Non-ECC Yes Maximum internal memory 96 GB Features Component for PC Motherboard form factor micro ATX Motherboard chipset family AMD Motherboard chipset AMD A620 Audio chip Realtek ALC897 Audio output channels 7.1 channels Windows operating systems supported Windows 10 x64, Windows 11 x64 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 4 Number of SATA II connectors 2 Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Rear panel I/O ports USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DisplayPorts quantity 1 DisplayPort version 1.4 Line-in Yes Microphone in Yes Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III RAID support Yes RAID levels 0, 1, 10 Network Ethernet LAN Yes Ethernet interface type Gigabit Ethernet LAN controller Realtek RTL8111H Wi-Fi No BIOS BIOS type EFI AMI BIOS memory size 256 Mbit Expansion slots PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 1 Graphics Parallel processing technology support Not supported Weight & dimensions Width 244 mm Depth 226 mm
Processor Processor manufacturer AMD Processor socket Socket AM5 Compatible processor series AMD Ryzen 9 7th Gen Maximum number of SMP processors 1 Memory Supported memory types DDR5-SDRAM Number of memory slots 2 Memory slots type DIMM Memory channels Dual-channel Non-ECC Yes Maximum internal memory 96 GB Features Component for PC Motherboard form factor micro ATX Motherboard chipset family AMD Motherboard chipset AMD A620 Audio chip Realtek ALC897 Audio output channels 7.1 channels Windows operating systems supported Windows 10 x64, Windows 11 x64 Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 4 Number of SATA II connectors 2 Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Rear panel I/O ports USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DisplayPorts quantity 1 DisplayPort version 1.4 Line-in Yes Microphone in Yes Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III RAID support Yes RAID levels 0, 1, 10 Network Ethernet LAN Yes Ethernet interface type Gigabit Ethernet LAN controller Realtek RTL8111H Wi-Fi No BIOS BIOS type EFI AMI BIOS memory size 256 Mbit Expansion slots PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 1 Graphics Parallel processing technology support Not supported Weight & dimensions Width 244 mm Depth 226 mm
Caratteristiche
Brand:
AS-Rock
EAN:
4710483943041
Peso:
1.5
