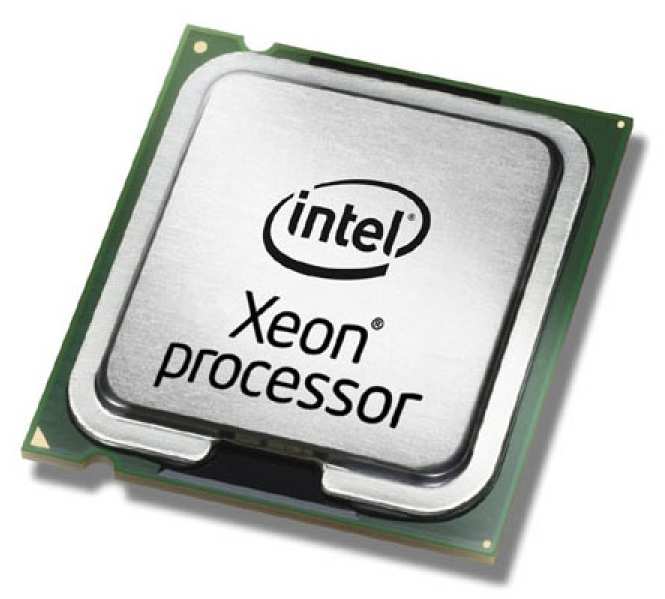

CPU Intel XEON E5-2620v4/8x2.1 GHz/20MB/TRAY - CM8066002032201

Intel E5-2620V4, Xeon. Processor family Intel® Xeon® E5 v4, Processor frequency 2.1 GHz, Processor socket LGA 2011-v3. Memory channels supported by processor Quad, Maximum internal memory supported by processor 1536 GB, Memory types supported by processor DDR4-SDRAM. Thermal Design Power (TDP) 85 W, VID Voltage Range 0 - 0 V. Supported instruction sets AVX 2.0, Scalability 2S, Physical Address Extension (PAE) 46 bit. Processor package size 52.5 x 51 mm
Processor Processor family Intel® Xeon® E5 v4 Processor frequency 2.1 GHz Processor cores 8 Processor socket LGA 2011-v3 Component for Server/Workstation Processor lithography 14 nm Box - Processor model E5-2620V4 Processor threads 16 System bus rate 8 GT/s Processor operating modes 64-bit Processor series Intel Xeon E5-2600 v4 Processor cache 20 MB Processor cache type Smart Cache Stepping R0 Processor boost frequency 3 GHz Bus type QPI Number of QPI links 2 Processor codename Broadwell Processor code SR2R6 Processor ARK ID 92986 Memory Memory channels supported by processor Quad Maximum internal memory supported by processor 1536 GB Memory types supported by processor DDR4-SDRAM Memory clock speeds supported by processor 1600,1866,2133 MHz Memory bandwidth supported by processor (max) 68.3 GB/s ECC supported by processor Ja Power Thermal Design Power (TDP) 85 W VID Voltage Range 0 - 0 V Features Execute Disable Bit Ja Idle States Ja Thermal Monitoring Technologies Ja Maximum number of PCI Express lanes 40 PCI Express slots version 3.0 Supported instruction sets AVX 2.0 Scalability 2S Physical Address Extension (PAE) Ja CPU configuration (max) 2 Embedded options available Ja Physical Address Extension (PAE) 46 bit Market segment SRV Processor special features Intel® Hyper Threading Technology (Intel® HT Technology) Ja Intel® Identity Protection Technology (Intel® IPT) - Intel® Turbo Boost Technology 2.0 Intel® vPro Technology Ja Intel Flex Memory Access - Intel® AES New Instructions (Intel® AES-NI) Ja Enhanced Intel SpeedStep Technology Ja Intel Trusted Execution Technology Ja Intel Enhanced Halt State Ja Intel VT-x with Extended Page Tables (EPT) Ja Intel Demand Based Switching Ja Intel® Secure Key Ja Intel TSX-NI Ja Intel® OS Guard Ja Intel 64 Ja Intel Virtualization Technology (VT-x) Ja Intel Virtualization Technology for Directed I/O (VT-d) Ja Conflict Free processor Ja Operational conditions Tcase 74 °C Technical details Processor cache 20480 KB Product type 4 Status Launched Product family Intel Xeon Processor E5 v4 Family Weight & dimensions Processor package size 52.5 x 51 mm Other features Compatibility Intel Server System R1208WT2GSR,Intel Server System R1208WTTGSR,Intel Server System R1304WT2GSR,Intel Server System R1304WTTGSR,Intel Server System R2208WTTYSR,Intel Server System R2208WT2YSR,Intel Server System R2208WTTYC1R,Intel Server System R2308WTTYSR,Intel Server System R2312WTTYSR,Intel Server System R2224WTTYSR,Intel Server System VRN2224THY2,Intel Server System VRN2224THY4,Intel Server Board S2600CW2R,Intel Server Board S2600CW2SR,Intel Server Board S2600CWTR,Intel Server Board S2600CWTSR,Intel Server Board S2600KPR,Intel Server Board S2600KPFR,Intel Server Board S2600KPTR,Intel Server Board S2600TPR,Intel Server Board S2600TPFR,Intel Server Board S2600WTTR,Intel Server Board S2600WT2R,Intel Server Board S2600WTTS1R,Intel Compute Module HNS2600KPFR,Intel Compute Module HNS2600KPR,Intel Compute Module HNS2600TP24R,Intel Compute Module HNS2600TPFR,Intel Compute Module HNS2600TPR,Intel Compute Module HNS2600TP24SR Maximum internal memory 1572864 MB
