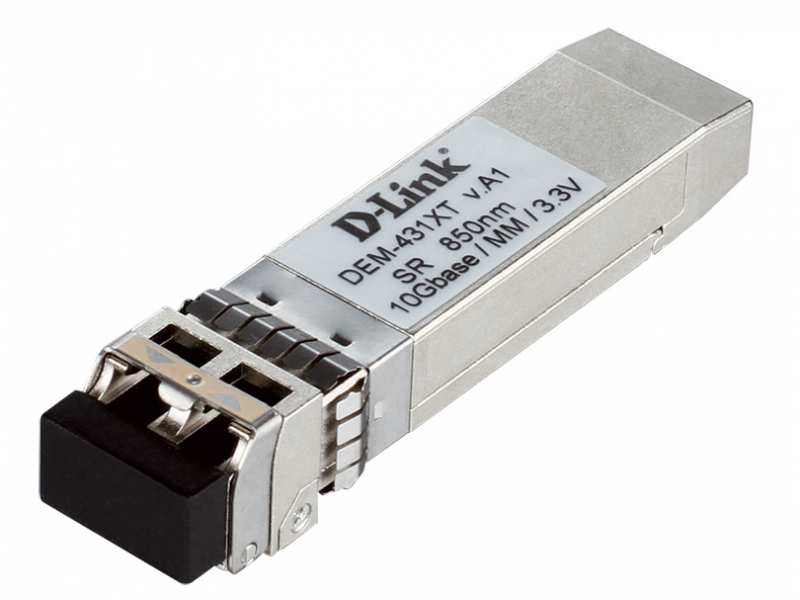

D-LINK 10GE SFP+ SR Transceiver - DEM-431XT

D-Link DEM-431XT. SFP transceiver type Fiber optic, Maximum data transfer rate 10000 Mbit/s, Interface type SFP+. Safety UL, TUV, CDRH, Certification CE, FCC, VCCI, C-Tick. Maximum voltage 3.3 V, Maximum current 300 A. Width 14.8 mm, Depth 11.8 mm, Height 56.5 mm. Package width 74 mm, Package depth 131 mm, Package height 49 mm
Performance SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Multi-mode fiber (MMF) supported Y Fiber optic connector LC Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm Maximum transfer distance 300 m Wavelength 850 nm Tx power (min) -6.5 dBmW Tx power (max) -1 dBmW Rx power (min) -11.1 dBmW Rx power (max) -1 dBmW Networking standards IEEE 802.3ae Harmonized System (HS) code 85369010 Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 85 % Storage relative humidity (H-H) 5 - 95 % Weight & dimensions Width 14.8 mm Depth 11.8 mm Height 56.5 mm Weight 18 g Power Maximum voltage 3.3 V Maximum current 300 A Technical details Sustainability certificates RoHS Logistics data Shipping (inner) case length 36 cm Shipping (inner) case width 26 cm Shipping (inner) case height 31 cm Shipping (inner) case net weight 3.2 kg Products per shipping (inner) case 50 pc(s) Pallet gross weight (air) 272 kg Master (outer) cases per pallet (air) 60 pc(s) Products per pallet (air) 3000 pc(s) Pallet gross length 102 cm Pallet gross width 122 cm Pallet height (air) 199 cm Pallet gross weight (sea) 272 kg Master (outer) cases per pallet (sea) 60 pc(s) Products per pallet (sea) 3000 pc(s) Pallet height (sea) 199 cm Shipping (inner) case gross weight 4.2 kg Packaging data Package width 74 mm Package depth 131 mm Package height 49 mm Package weight 64 g Features Safety UL, TUV, CDRH Certification CE, FCC, VCCI, C-Tick
