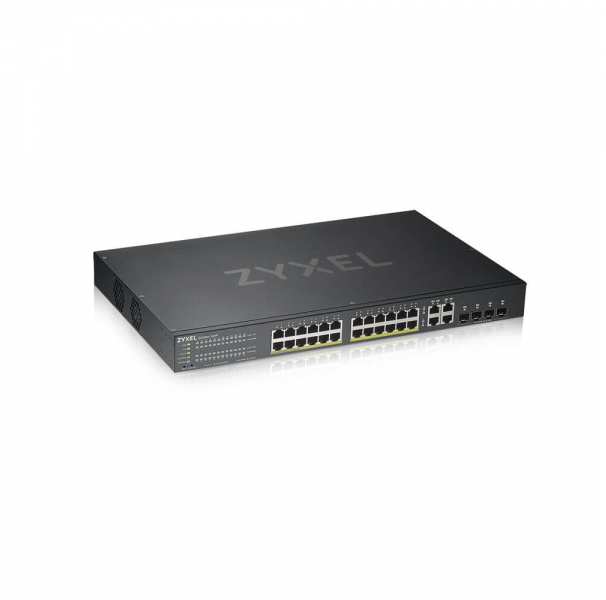

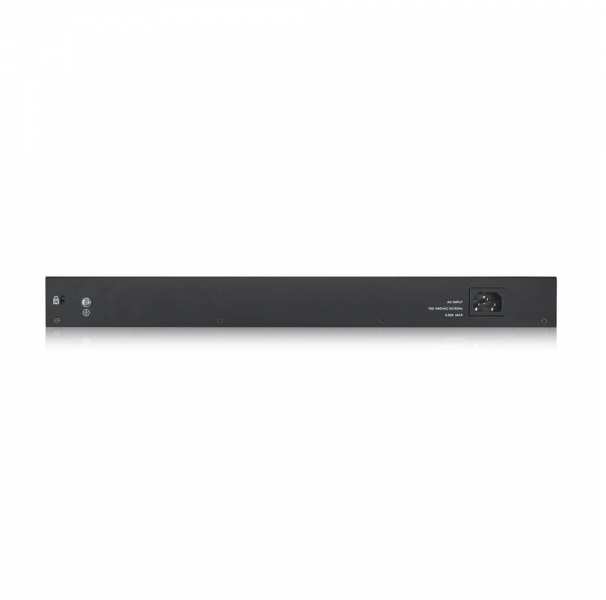

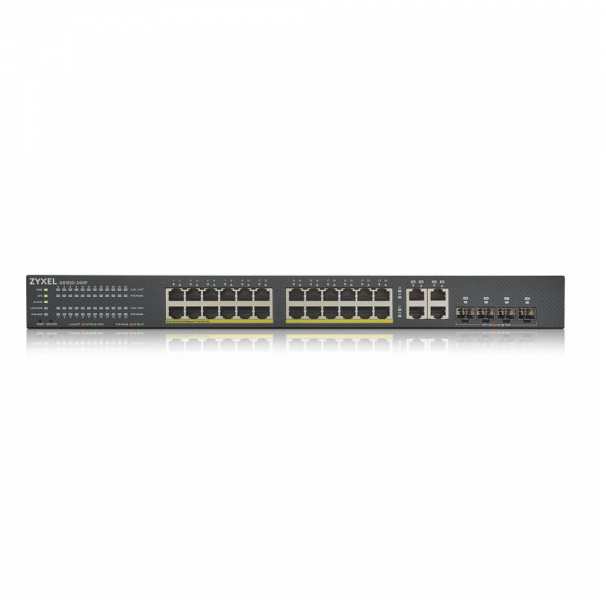

ZyXEL Switch 24-port 10/100/1000 GS192024HPV2-EU0101F
Accedi in modo che possiamo avvisarti di una risposta
Descrizione
Zyxel GS1920-24HPV2. Switch type Managed. Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity 24. MAC address table 16000 entries, Switching capacity 56 Gbit/s. Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE.... Power over Ethernet (PoE). Rack mounting
Networking Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z Virtual LAN features Private VLAN,Voice VLAN,Protocol-based VLAN,MAC address-based VLAN,Port-based VLAN,IP subnetbased VLAN Spanning tree protocol Y 10G support N Flow control support Y Copper ethernet cabling technology 100BASE-TX,1000BASE-T VLAN support Y Rate limiting Y Data transmission Packet buffer memory 1.5 MB MAC address table 16000 entries Forwarding rate 42 Mpps Switching capacity 56 Gbit/s Power over Ethernet (PoE) Power over Ethernet (PoE) Y Power over Ethernet (PoE) ports quantity 24 Total Power over Ethernet (PoE) budget 375 W Ports & interfaces Combo SFP ports quantity 4 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Basic switching RJ-45 Ethernet ports quantity 24 Fiber optic connector SFP Security DHCP features DHCP snooping,DHCP relay,DHCPv6 relay,DHCP client Security algorithms 802.1x RADIUS,SNMP,SNMPv3 IP-MAC-Port binding Y Queue scheduling algorithms SPQ,WFQ,Weighted Round Robin (WRR) Authentication type IEEE 802.1x,RADIUS CPU defense Y Access Control List (ACL) Y MAC address filtering Y Password protection Y Authentication Guest VLAN,Port-based authentication IGMP snooping Y Management features System event log Y MIB support RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 Quality of Service (QoS) support Y ARP inspection Y Switch type Managed Multicast features Multicast support Y Design Product colour Black Electromagnetic compatibility FCC 15 A, CE A, BSMI EMC Rack mounting Y Certification RoHS LED indicators Y Safety LVD, BSMI Weight & dimensions Depth 270 mm Weight 3.8 kg Height 44 mm Width 441 mm Operational conditions Storage relative humidity (H-H) 10 - 95 % Storage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 0 - 50 °C Heat dissipation 1580.54 BTU/h Operating relative humidity (H-H) 10 - 95 % Performance Noise level 27.2 dB Internal memory 256 MB Flash memory 32 MB Mean time between failures (MTBF) 638691 h Power AC input frequency 50 - 60 Hz Power consumption (max) 463.5 W AC input voltage 100 - 240 V Optical fiber Fiber ethernet cabling technology 1000BASE-X Packaging data Package depth 355 mm Rack mount kit Y Package height 107 mm Cables included AC Package width 616 mm Package weight 4.97 kg
Networking Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z Virtual LAN features Private VLAN,Voice VLAN,Protocol-based VLAN,MAC address-based VLAN,Port-based VLAN,IP subnetbased VLAN Spanning tree protocol Y 10G support N Flow control support Y Copper ethernet cabling technology 100BASE-TX,1000BASE-T VLAN support Y Rate limiting Y Data transmission Packet buffer memory 1.5 MB MAC address table 16000 entries Forwarding rate 42 Mpps Switching capacity 56 Gbit/s Power over Ethernet (PoE) Power over Ethernet (PoE) Y Power over Ethernet (PoE) ports quantity 24 Total Power over Ethernet (PoE) budget 375 W Ports & interfaces Combo SFP ports quantity 4 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Basic switching RJ-45 Ethernet ports quantity 24 Fiber optic connector SFP Security DHCP features DHCP snooping,DHCP relay,DHCPv6 relay,DHCP client Security algorithms 802.1x RADIUS,SNMP,SNMPv3 IP-MAC-Port binding Y Queue scheduling algorithms SPQ,WFQ,Weighted Round Robin (WRR) Authentication type IEEE 802.1x,RADIUS CPU defense Y Access Control List (ACL) Y MAC address filtering Y Password protection Y Authentication Guest VLAN,Port-based authentication IGMP snooping Y Management features System event log Y MIB support RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 Quality of Service (QoS) support Y ARP inspection Y Switch type Managed Multicast features Multicast support Y Design Product colour Black Electromagnetic compatibility FCC 15 A, CE A, BSMI EMC Rack mounting Y Certification RoHS LED indicators Y Safety LVD, BSMI Weight & dimensions Depth 270 mm Weight 3.8 kg Height 44 mm Width 441 mm Operational conditions Storage relative humidity (H-H) 10 - 95 % Storage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 0 - 50 °C Heat dissipation 1580.54 BTU/h Operating relative humidity (H-H) 10 - 95 % Performance Noise level 27.2 dB Internal memory 256 MB Flash memory 32 MB Mean time between failures (MTBF) 638691 h Power AC input frequency 50 - 60 Hz Power consumption (max) 463.5 W AC input voltage 100 - 240 V Optical fiber Fiber ethernet cabling technology 1000BASE-X Packaging data Package depth 355 mm Rack mount kit Y Package height 107 mm Cables included AC Package width 616 mm Package weight 4.97 kg
Caratteristiche
Brand:
Zyxel
EAN:
4718937601936
Peso:
4.97
